Hello everyone

What causes cartridge heaters to burn out in the mold manifold?

We are experiencing a recurring problem with cartridge heaters in our injection mold, particularly in the manifold and nozzle areas.

The problem occurs only in certain zones. Even after repairing the affected zones or installing new cartridge heaters, the same problem happens again.

Thanks

Walked into this absolute masterpiece today. Apparently, the nozzle decided the sprue bushing was optional and started manufacturing its own parts outside the mold.

Someone was kind enough to retract the barrel and put it into cooldown, so now we've got approximately 47 pounds of industrial-grade spaghetti welded to everything within a three-foot radius.

On the bright side, scrap production is exceeding expectations, and I'm pretty sure we've invented a new form of structural reinforcement.

I've seen plenty of hogs heads, but this one takes the fuckin cake. Every electrical component on this barrel is encapsulated in PMMA 😫

Do you & your companies go through the manufactures for replacement heater bands or do you have alternate suppliers? We usually go through the manufacturers, but just got an updated quote a nozzle heater band for our 110 ton Arburg and it is $220.00 more than last purchased 2 1/2 years ago. I know companies like PPE sell some but their sizes are limited.

Fellow process engineer/technician here (I’ve only recently gotten into the engineering side) I’m curious, when applying for these positions is there any certification that will clearly stand out and make it known that the individual is proficient/advanced in the field?

For context: I have 6 I believe, all from paulson.
Molding fundamentals
Technology of injection molding 1
Technology of injection molding 2
Technology of injection molding 3
Part problem and solutions
Pro-molder 1

All with a 90% or better passing grade.

I am having a really really hard time trying to find any solution to my immediate problem and am just looking for insight from the community. Are these not of sufficient accreditation? I know that plastics community is small…. Figured I’d ask idk.

We’ve been running some long, thin-walled automotive interior parts in a TPE blend, and the post-mold warp is driving our QC team nuts. The shrinkage difference from the gate to the far edge keeps throwing the clip alignment features out of position.

I’ve noticed that a lot of larger footwell and cargo pieces seem to use heavy thermoforming instead of conventional injection molding. Is that mainly a tooling-cost choice for lower-volume runs, or does thermoforming do a better job of controlling internal stress and edge curl in semi-rigid flexible plastics?

We’ve adjusted the cooling lines and hold pressure, but the cycle time is getting hard to justify just to keep the edges flat. If anyone has worked on long, flat automotive trim parts, what tool design or material factors have made the biggest difference in keeping the edge height stable without adding a bunch of complicated ribbing?

Right now at my shop clamps and bolts get left at presses they were last used at... which ends up with clamps everywhere and a lot of time searching for a certian type for a certain tool/press combo. I understand a lot of it comes down to people and putting things back (5's) but we've tried in the past to consolidate how things are stored, whether it be one big toolbox, holding all the clamps in buckets/metal bins at each press, however none of them really worked: the buckets got dumped and used for material and the metal bins got bent and smashed...

Was wondering if you guys have had any lasting success with a certain storage set up and /or practice regarding this.

Hello all, share your wisdom, we have 2 Victory SPEX a 240 & 330ton. Recently lost a linear stroke transducer for Mold Position, got it replaced and recalibrated with little issue, problem is clamp is almost slamming shut and apparently has for a while. I know each machine is fine tuned during commissioning both machines have similar variables values in MoldClosing, but the highlighted lines are raising some questions.

Line 2 is way too fast, should probably be about 1-2"/sec

Line 3 would leave me to believe if you put an object smaller than 0.4" between the partingline the IMM could build tonnage so that should be near zero

Line 4should be closer to zero

I'm comparing injection molding and vacuum thermoforming for high wall automotive footwell trays, mainly using TPE-type materials.

From what I've seen, thermoforming obviously has a tooling cost advantage, but once you get into deeper draws, the material can thin out quite a bit around the vertical walls and tighter radii. I'm wondering how much that actually matters for long-term dimensional stability, especially after repeated hot/cold cycles inside a car.

Injection molding gives you more control over wall thickness, ribs, and local reinforcement, but the tooling cost gets pretty serious once the floor geometry becomes complicated.

For parts like this, how much of the warping resistance comes down to maintaining more consistent wall sections versus designing in ribs, radii, and proper stress relief?

I'm less interested in the cost side and more curious about what tends to keep the perimeter from slowly changing shape over time.

I'm the lone mold designer at my mult. company corporation. They recently got into setting goals for engineering. I've got 15 years in mold design (small complex medical devices). They want me to go for more outside training/education to become the company wide SME.

I'm having trouble finding anything beyond basic entry level stuf or somewhat intermediate level.

Main topics:

Complex slides, angled side cores, and compound actions

Advanced lifter design and difficult undercuts

Complex parting lines, shut-offs, and insert design

Micro product molding

Complex overmolding

Complex core pin & Molding rod design

Unscrewing molds

Thank you for any leads!

Hello!
If anyone here has experience with molds using inductive heating (for cosmetic effects) please contact me!
Thank youu 🙂

Just pulled this part off the press at our shop. It features some pretty complex internal ribbing and sealing grooves.

Always interested in how other engineers and manufacturers approach DFM for parts like this to avoid sink marks and warpage. How would you guys gate this one?

Hi,

Anybody have experience with these machineries which will clean up the cooling lines from mold?

Bio-circle seems to be having some kind of machinery and Fidica also.

- Fidica seems to be having some kind of separate cleaning and protective media (neutralizer) tanks?

Not able to share links due rules.

Are these any good? I have small doubts little bit with that separate tank function and how does it work in real life.

What kind of chemicals you have used?

Fidica seems to be having some kind of cleaning agent available.

So the company I work for has alot of old Van Dorn Injection Molding machines with Scoremaker-I, SCI Cards, and such controling these machines. I was wondering if there is more people out there with these machines and have a good amount of knowledge on how to troubleshoot them.

I was having trouble finding a good reddit area for this. Correct me if I'm in the wrong area.

A few days ago I posted a couple of pictures of an old injection molding machine I bought for 100 bucks. I put together a video showing everything in a bit more detail. Let me know if you think it's salvageable!

Hi there. Has anyone worked with a Hwamda for general moulding? A client of mine has them and swears by them. They look decent considering their price.

I am designing a one-time-use injection-molded housing made from two irregular curved shell halves. The halves mate along the longitudinal seam shown in the image. I would prefer to avoid side actions and use a straight-pull mold.

Would a tongue-and-groove joint with discrete crush ribs or a segmented snap feature be appropriate? Is there a better snap-fit geometry for this type of curved housing? Adhesive bonding is also an option.

Material: Polycarbonate
wall thickness: 2mm
Assembly direction: Top clips into bottom part
Requirement: one-time assembly, no planned disassembly.

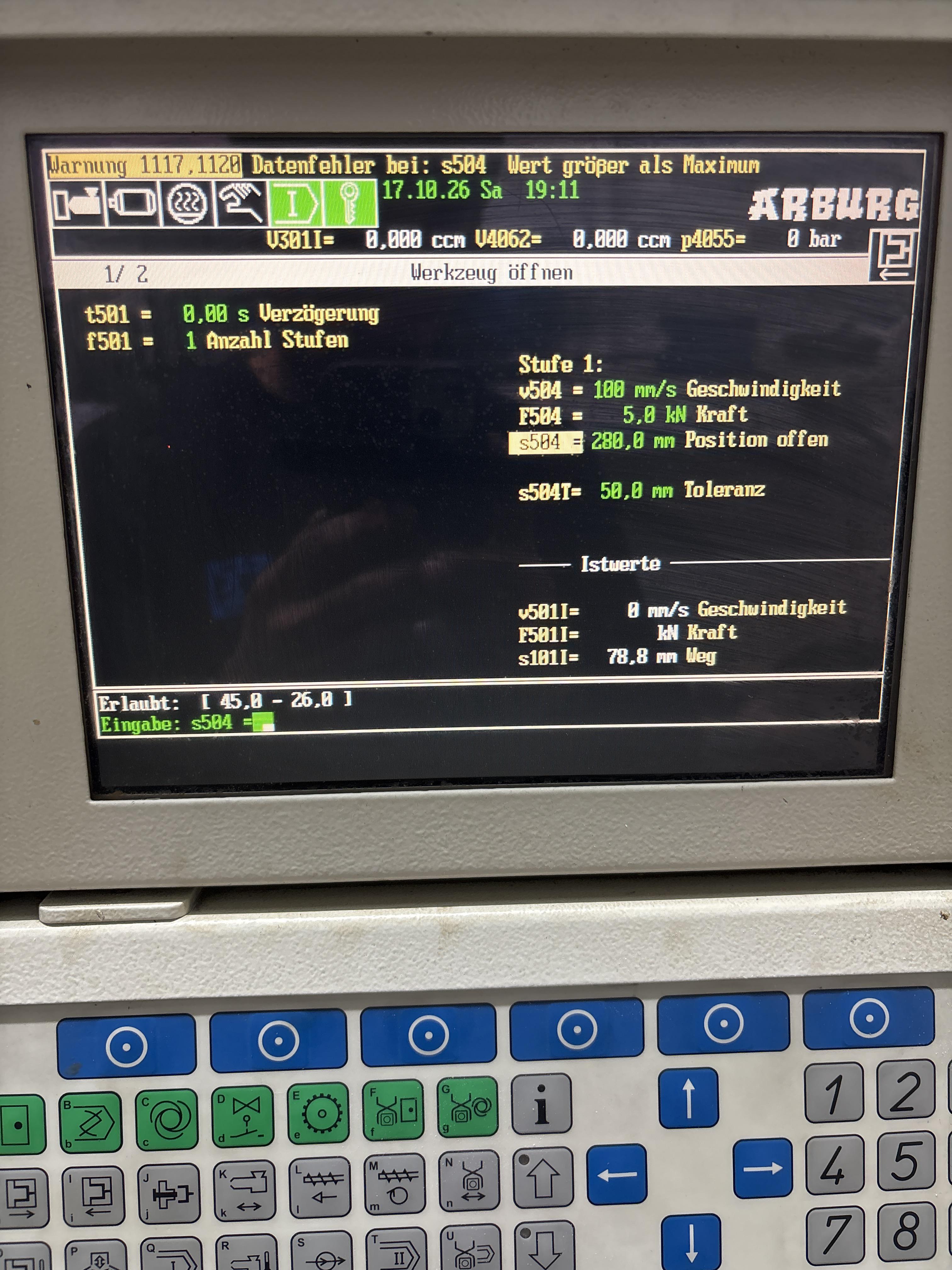

Hello guys, I have this 1998 320C and it was working absolutely fine until I took off the mold to change it. After I put the mold on and started closing the clamp the ejector came back as usual so I try to zero it but I can’t. What it says is that the clamp is too open while it’s not and I can’t change it. It was set at 280mm and after this happened it doesn’t allow me to do any movement because the measurements are wrong as it says. As you see it says 45-26mm and when I put 45 it says it’s over maximum but when I put 44.9 it’s under minimum. How can I solve it

It’s not even an eyebolt. It’s just the eye welded to the cylinder mount.

This one is on the final print and fitment stages, once I am happy with everything it will be on printables for free to download. I am going to make a basic blank mold with all plates and basic bolts as well. That one will have the STEP files released so people can make their own mold if they so please.

This one uses a sleeve style ejector which was fun to model and build. No cooling channels because of complexity of printing and no runner, mock parts will be available.

IT HAS BEEN POSTED!

https://www.printables.com/model/1883118-injection-mold-2-sleeve-ejectors

Took way longer to get posted than I wanted. Free time is something that apparently is a very very hot commodity. Please tell me all the good and bad of the design. It is hefty on filament. The face dimensions are 200mm x 200mm and well over that in thickness once assembled.
